Manufactur standard Shielded Cable Control Drag Chain Marine Flexible Control Cable

Our team through professional training. Skilled professional knowledge, strong sense of service, to meet the service needs of customers for Manufactur standard Shielded Cable Control Drag Chain Marine Flexible Control Cable, You should do not wait to make contact with us should you be interested inside our products and solutions. We firmly believe that our products will make you contented.
Our team through professional training. Skilled professional knowledge, strong sense of service, to meet the service needs of customers for China Electronic Wire Harness and High Quality Custom Cable Assembly, We only supply quality products and we believe this is the only way to keep business continue. We can supply custom service too such as Logo, custom size, or custom products etc that can according to customer’s requirement.
Application: Shipboard installations, Maritime Environment, Fixed or portable installations, Indoor use, fixed installations, High data rates, Ships, High speed & Light craft.
Outer Jacket: LSZH
Outer Diameter: 4.95±0.20 mm
Weight: 39 kg/km
Standards: IEC 60332-1, IEC 60332-3, IEC 60754-1/2, IEC
61034-1/2, UL 1581 VW-1

Design & Construction

Conductor: Stranded Tinned copper
Conductor Size: 19/0.18±0.01mm
Insulation: Solid Polyethylene
Insulation OD: 2.95±0.15mm
Insulation Thickness: 0.80mm (Min) 1.00mm (Nom)
Foil shield: AL/PET/AL foil
Braid: Tinned copper wire
Braid Formation: 16x7x0.127
Braid Coverage: ≥95%
Outer jacket: LSZH SHF1
Jacket Thickness 0.54mm (Min) 0.69mm (Nom)
Outer Jacket OD: 4.95±0.20 mm
Outer Jacket Color: Grey (optional)

Environmental properties and Fire Performances

Degree of acidity of gases: IEC 60754-1/2
Halogen acid gas: IEC 60754-1/2
Smoke Emission: IEC 61034-1/2
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-22

Electrical characteristics

Inner Conductor DC resistance: ≤ 38.5Ω /km
Outer Conductor DC resistance: ≤ 13Ω km
Capacity: 100±5pF/m
Characteristic Impedance200MHz: 50±3Ω

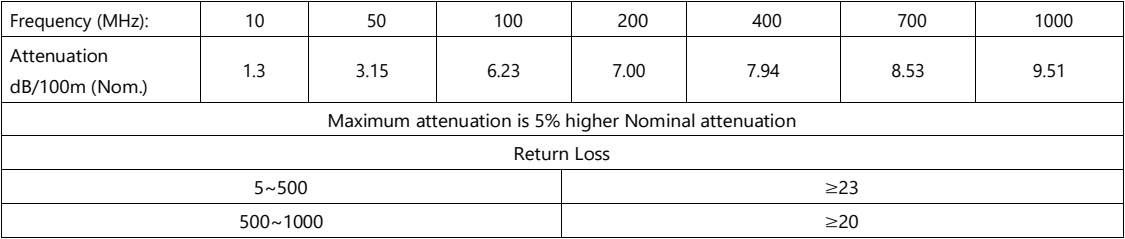

Electrical Properties
