Application: Low loss flexible feeder cable designed for broadband transmission from sources like radio antennas, radars, GPS devices, mobile phone antennas to distribution systems inside ships, tunnels, buildings and underground areas where RF signals normally cannot be received. RF LLF 1/2 Hiflex is the best flexibility, used as jumper cable. The combination of extra flexibility and low loss makes RF LLF 1/2 Hiflex the natural choice for most applications in RF networks.

Outer Jacket: LSZH
Outer Diameter: 27.50 ± 0.20 mm
Weight: 430 kg/km
Standards: IEC 60332-1, IEC 60332-3, IEC 60754-1/2, IEC
61034-1/2, UL 1581 VW-1

Design & Construction

Conductor: Helical Corrugated copper tube
Conductor Size: 9.40 ± 0.20mm
Insulation: Foam Polyethylene
Insulation OD: 22.20 ± 0.30mm
Screen: Corrugated Cu tube
Screen OD: 24.90 ± 0.30mm
Outer jacket: LSZH SHF1
Outer Jacket OD: 27.50 ± 0.20mm
Outer Jacket Color: Black (optional)

Environmental properties and Fire Performances

Degree of acidity of gases: IEC 60754-1/2
Halogen acid gas: IEC 60754-1/2
Smoke Emission: IEC 61034-1/2
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-22

Electrical characteristics

Conductor resistance： 2.5Ω /km
Peak RF voltage: 2.8 [KV]
Capacity: 74±5pF/m
Characteristic Impedance200MHz: 50±3Ω
Min. bending radius： 90 [mm]
Min. bending radius flexible： 120 [mm]

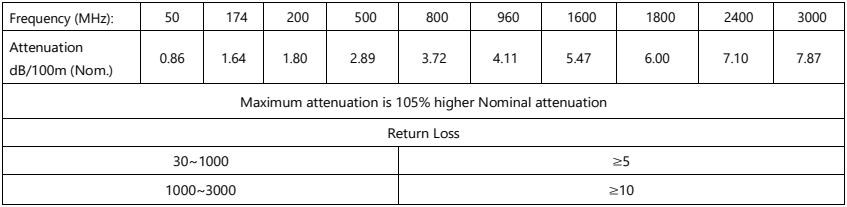

Electrical Properties
