Application: Shipboard installations, Maritime Environment, Fixed or portable installations, Indoor use, fixed installations, High data rates, Ships, High speed & Light craft.
Outer Jacket: LSZH
Outer Diameter: 10.80±0.20 mm
Weight: 180 kg/km
Standards: IEC 60332-1, IEC 60332-3, IEC 60754-1/2, IEC
61034-1/2, UL 1581 VW-1
Design & Construction
Conductor: Silver plated Copper
Conductor Size: 7/0.75±0.01mm
Insulation: Polyethylene
Insulation OD: 7.24±0.15mm
Insulation Thickness： 2.25mm (Min) 2.50mm (Nom）
Foil shield: AL/PET/AL foil
Braid: Silvered copper braid
Braid Formation: 16x8x0.18
Braid Coverage: ≥95%
Outer jacket: LSZH SHF1
Jacket Thickness 1.00mm (Min) 1.15mm (Nom)
Outer Jacket OD: 10.80±0.20 mm
Outer Jacket Color: Black (optional）
Environmental properties and Fire Performances
Degree of acidity of gases: IEC 60754-1/2
Halogen acid gas: IEC 60754-1/2
Smoke Emission: IEC 61034-1/2
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-22
Electrical characteristics
Inner Conductor DC resistance: ≤ 4.2Ω /km
Outer Conductor DC resistance: ≤ 6Ω km
Capacity: 100±5pF/m
Characteristic Impedance200MHz: 50±3Ω

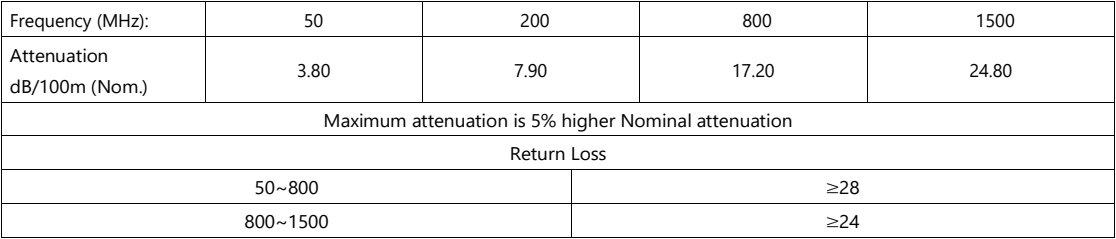

Electrical Properties
