Application: Shipboard installations, Maritime Environment, Fixed or portable installations, Indoor use, fixed installations, High data rates, Ships, High speed & Light craft.
Outer Jacket: LSZH
Outer Diameter: 10.30±0.20 mm
Weight: 160 kg/km
Standards: IEC 60332-1, IEC 60332-3, IEC 60754-1/2, IEC
61034-1/2, UL 1581 VW-1

Design & Construction

Conductor: Stranded copper wire
Conductor Size: 7/0.75±0.01mm
Insulation: Solid Polyethylene
Insulation OD: 7.24±0.15mm
Insulation Thickness: 2.25mm (Min) 2.50mm (Nom)
Foil shield: AL/PET/AL foil
Braid: Bare copper wire
Braid Formation: 16x8x0.18
Braid Coverage: ≥85%
Outer jacket: LSZH SHF1
Jacket Thickness 1.00mm（Min）1.15mm（Nom）
Outer Jacket OD: 10.30±0.20 mm
Outer Jacket Color: Grey (optional)

Environmental properties and Fire Performances

Degree of acidity of gases: IEC 60754-1/2
Halogen acid gas: IEC 60754-1/2
Smoke Emission: IEC 61034-1/2
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-22

Electrical characteristics

Inner Conductor DC resistance: ≤ 7Ω /km
Outer Conductor DC resistance: ≤ 8Ω km
Capacity: 100±5pF/m
Characteristic Impedance200MHz: 50±3Ω

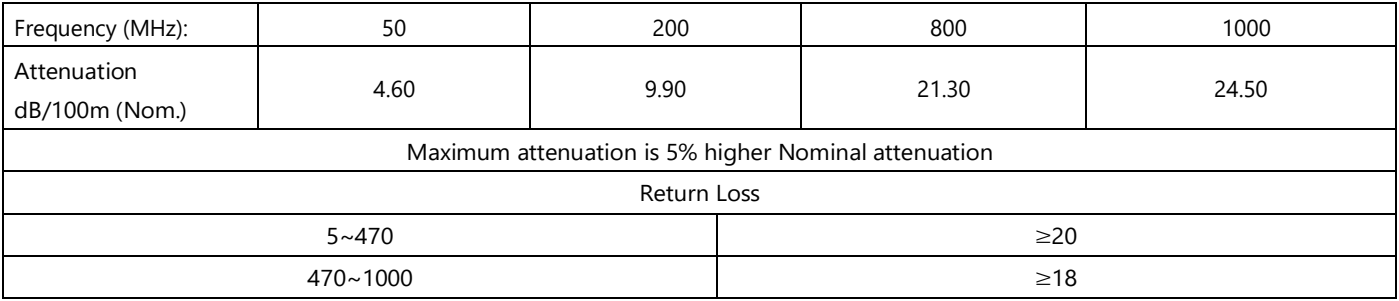

Electrical Properties
